One for $1.06
-
10 for $7.43
-
100 for $52.00
-
300 for $132.60

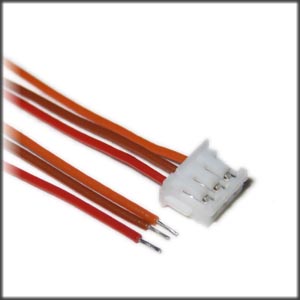

This is a 1inch AR6300 servo lead made with our Economy Lite 28AWG JR Wire & 1.50mm 1x3 Connector. Opposite end is stripped and tinned. This lead is functionally identical to the lead on DSP60J servos. Unlike most RC electronics, the AR6300 does not have a positive-center wire orientation. This lead has the power wires crossed to bring it back to the typical positive-center orientation on the stripped/tinned end. Can be used to replace a damaged servo lead, make extensions, or for making lightweight onboard electronics for the Spektrum AR6300. Please note: Unlike the 3inch and 8inch leads which are made with fused ribbon wire, this lead is made with separated conductors.
Connectors (PDF)
